MAUCH

003: PL-200 Sensor Board (Delivery August 2024)

003: PL-200 Sensor Board (Delivery August 2024)

Regular price $40.95 USD
Regular price Sale price $40.95 USD
Sale Sold out

User ManualDOWNLOAD

200A - Current / Voltage measurement sensor board, based on Allegro Hall Sensor ACS770-250U.

Voltage range is up to 14S (60V) with solder bridge open and up to 7S (30V) with solder bridge closed. Please check the manual page for more details.

This Sensor board connects directly to any Premium-Line BEC or Sensor Hub X2-V2.

Connected to the sensor are 2x10cm AWG10 wire (red) as a standard.

REM: The connector is Molex / Clik-Mate / 1.25mm / 4p (5023800400)

Without CFK enclosure = 27.5 x 19.5 x 10.5mm / 17g (with 2x 10cm 10AWG)

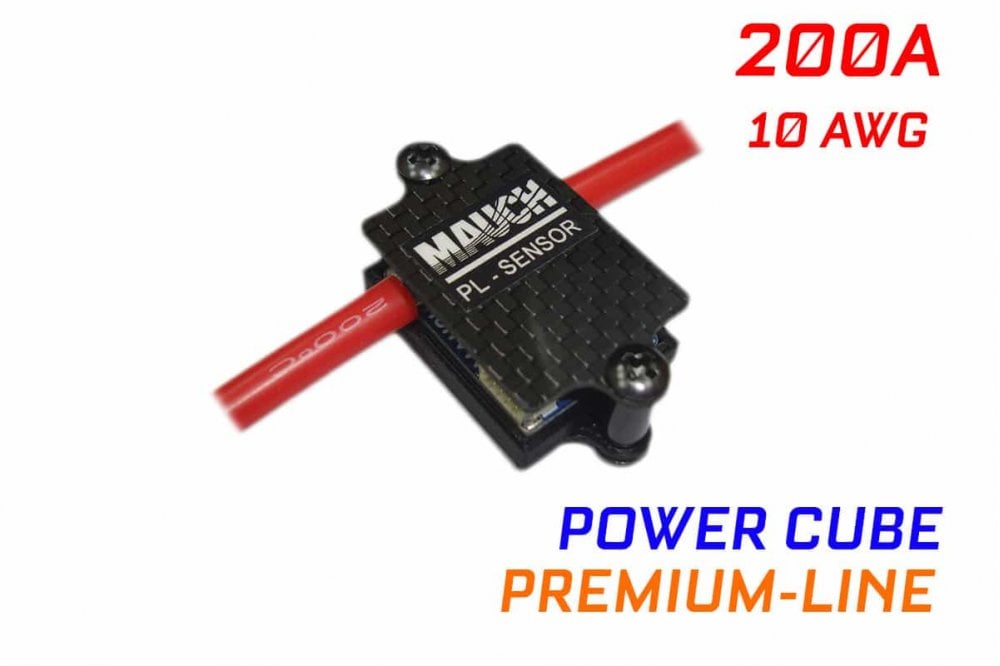

With CFK enclosure = 43.5 x 23.0 x 15mm / 22g (with 2x 10cm 10AWG)

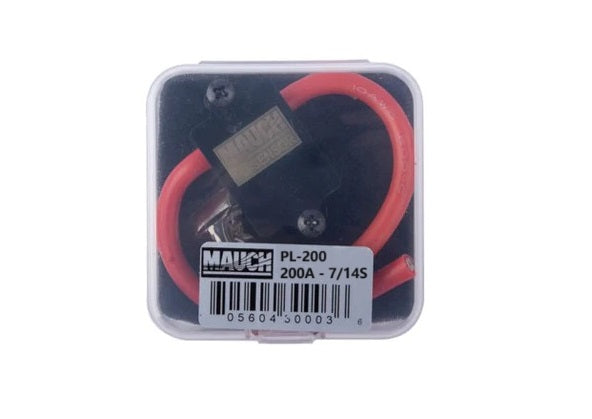

Delivery in PP box: 55 x 55 x 20mm / 40g

Delivery without sensor cable (comes with the BEC's), with ABS/Enclosure.
