005: PL-200/8 120V Sensor Board (Delivery January 2025)

User Manual: DOWNLOAD

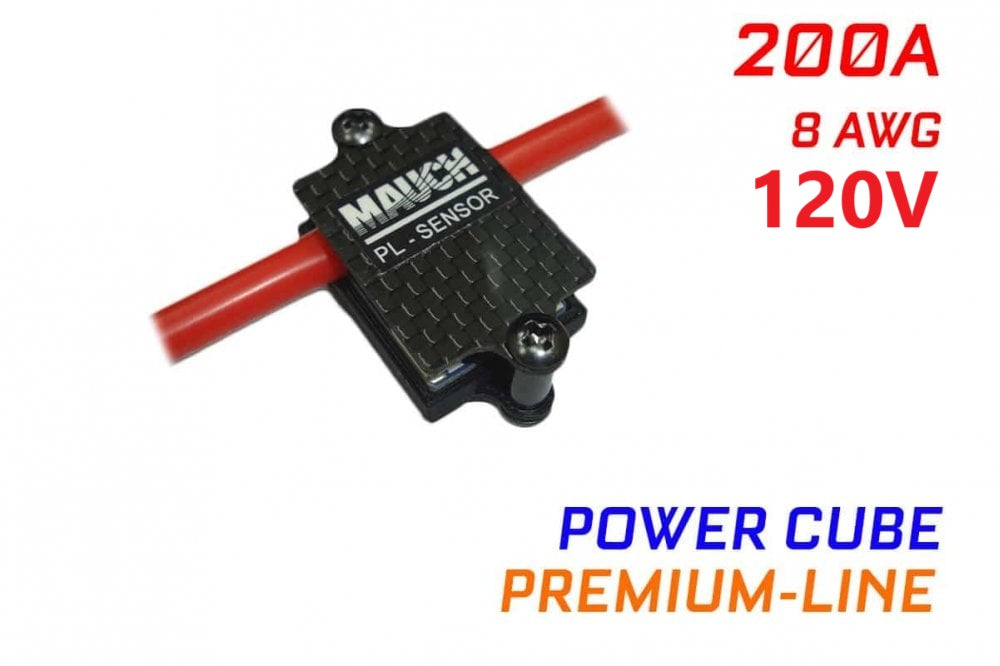

200A - Current / Voltage measurement sensor board, based on Allegro Hall Sensor ACS770-250U.

Voltage range is up to 28S (120V) with solder bridge open and up to 7S (30V) with solder bridge closed. Please check the manual page for more details.

All high voltage parts covert with solder-mask paint to reduce risk of contact.

This Sensor board connects directly to any Premium-Line BEC or Sensor Hub X2-V2.

Connected to the sensor are 2x15cm 8AWG wire (red) as a standard.

REM: The connector is Molex / Clik-Mate / 1.25mm / 4p (5023800400)

Without CFK enclosure = 27.5 x 19.5 x 10.5mm / 45g (with 2x 15cm 8AWG)

With CFK enclosure = 43.5 x 23.0 x 15mm / 50g (with 2x 15cm 8AWG)

Delivery in PP box: 55 x 55 x 20mm / 60g

Delivery without sensor cable (comes with the BEC's), with ABS/Enclosure.
