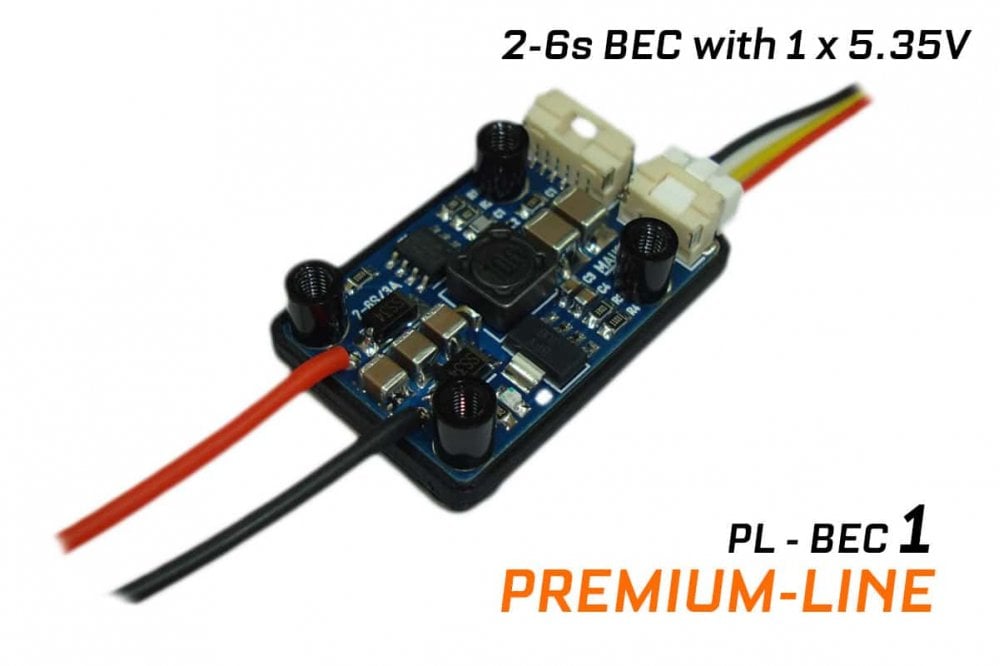

015: PL 2-6S BEC 1x5.35V (Delivery January 2025)
015: PL 2-6S BEC 1x5.35V (Delivery January 2025)
User Manual: DOWNLOAD
Input 2-6S LiPo / max. 28V.
Output 5.35V / 3A -> +/- 0.05V –> Ripple 10mV (0.2%) at 1.5A output current.
Inclusive LDO power supply (+5.00V +/- 0.03V) for the sensor board PL-xxx as well as PL- Sensor Hub X2 and output connector with Molex Clik-Mate 4p.
Input wrong polarity protection, as well as TDK input and output capacitors to prevent burnout of the UBEC from voltage spikes.
Blue power "ON' LED.
34mm x 22mm x 7mm / 7g without CFK enclosure

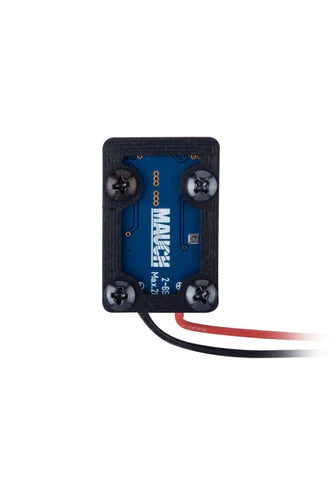

36mm x 24mm x 10mm / 12g with CFK enclosure

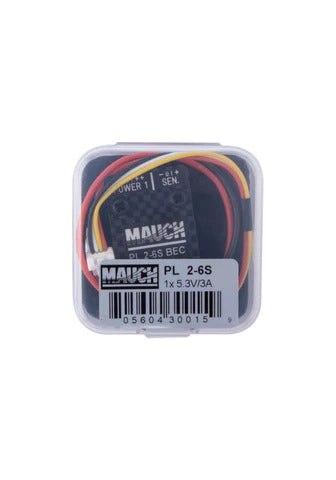

Delivery in PP box: 55 x 55 x 20mm / 25g
Scope of delivery:
1x PL-2-6S BEC 1x
1x CFK enclosure

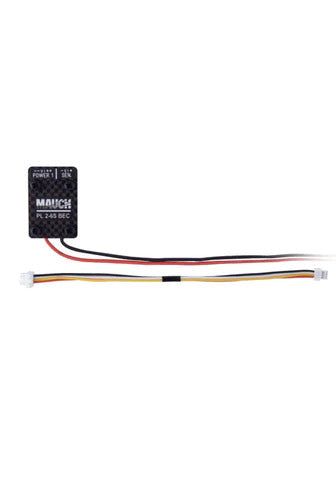

1x Sensor cable Molex Clik-Mate 4p / L = 150mm
REM: The BEC is delivered without a flight controller cable, so please purchase the correct cable to match your FC:
041: DF13-6p -> Pixhawk 1 / APM... etc.
042: Molex Clik-Mate 2.0 - 6p -> Pixhawk 2.1
043: JST-GH-6p -> Pixhawk 3... etc
