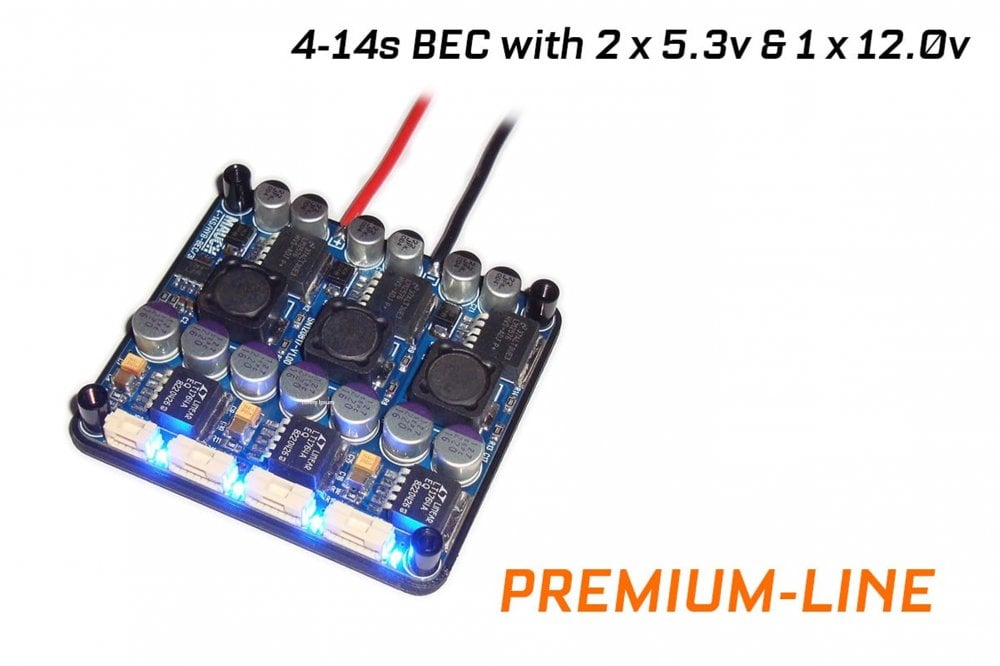

024: PL 4-14S HYB-BEC / 2x 5.3V / 1x 12.0V
024: PL 4-14S HYB-BEC / 2x 5.3V / 1x 12.0V
Couldn't load pickup availability
User Manual: DOWNLOAD
Input 4-14S LiPo / max. 60V.
Output 2x 5.30V / 1x 12.0V / 3A -> +/- 0.05V –> Ripple 1mV @ 1.5A output current.
Inclusive LDO power supply (+5.00V +/- 0.03V) for the sensor board PL-xxx as well as PL- Sensor Hub X2/X8 and output connector with Molex Clik-Mate 4p.
Blue power "ON' LED.
59mm x 66mm x 13mm / 57g with enclosure(without cables)

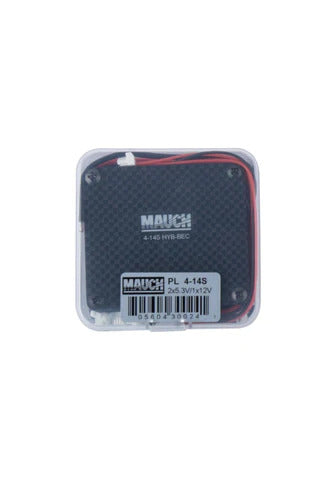

Delivery in PP box:

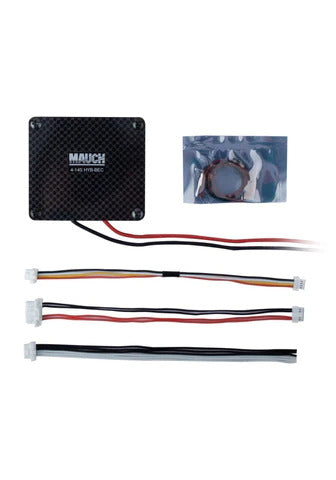

Scope of delivery:
1x 024: PL 4-14S HYB-BEC / 2x 5.3V / 1x 12.0V
1x 040: PL - Series sensor cable / L=150mm
1x 050: Backup cable for Pixhawk 2.1 / L=150mm
1x 5.0V output cable (white/black) one site Molex Clik-Mate 1.25mm-6p, the other site open. / L = 150mm

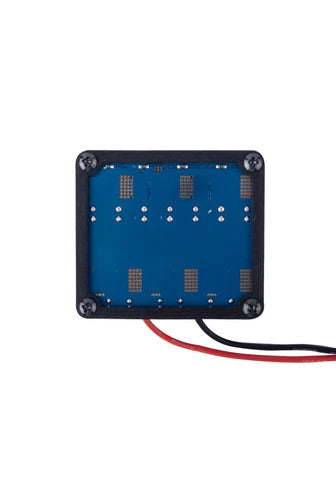

1x Enclosure
REM: The BEC is delivered without a flight controller cable, so please purchase the correct cable to match your FC:
041: DF13-6p -> Pixhawk 1 / APM... etc.
042: Molex Clik-Mate 2.0 - 6p -> Pixhawk 2.1
043: JST-GH-6p -> Pixhawk 3... etc
