054: Power-Cube 4 / V3 (Delivery January 2025)

Input voltage 4-14S, max. 60V !

User-Manual: DOWNLOAD

Power-Cube 4 "V3" with 4 outputs 3x 5.3V / 10A + 1x 12.0V / 10A

REM: The output voltage can be customized. Please contact us, if you need a different output voltage on output 2, 3, or 4 -> Output 1 can't be changed and must remain 5.3V.

REM: Delivery without 059: Power-Switch . Please order it separately if required.

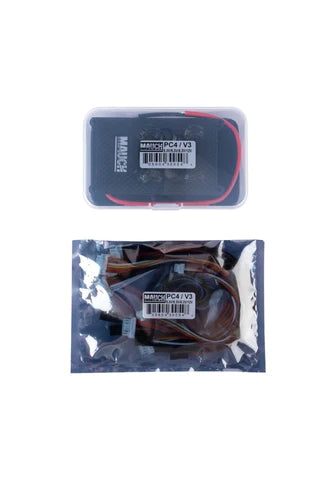

Scope of delivery:

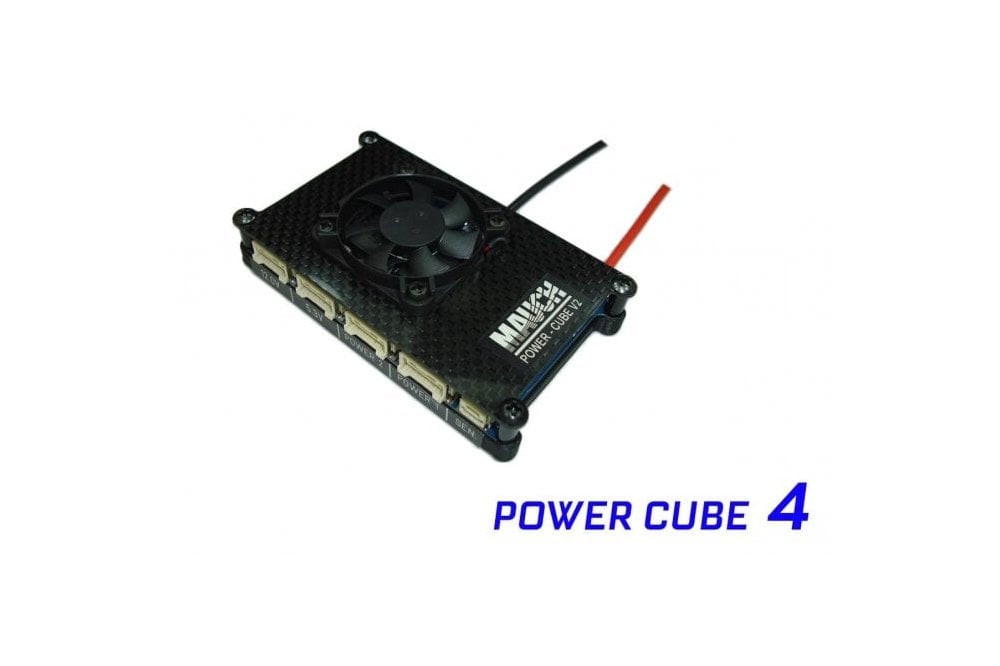

1x Power-Cube 4 with CFK enclosure and fan.

1x (040) PL sensor cable / L = 150mm

1x (060) Power-Cube / Pixhawk 2.1 cable / 2x Clik-Mate-6p / L = 200mm

1x (061) Power-Cube / Pixhawk 2.1 Backup / 2x Clik-Mate-6p + 1x JR / L = 200mm

1x (062) Power-Cube / 5.3V output cable / 1x C-M-6p + 3x JR / L = 200mm

1x (063) Power-Cube / 12.0V output cable / 1x C-M-6p + 3x JR / L = 200mm

The Power-Cube series can be customized. Therefore, they’re produced according to order and it might take up to 12 business days to ship the parts out
