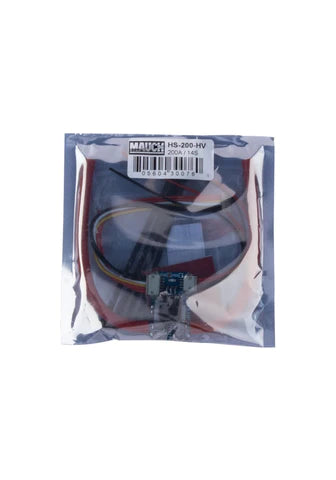

076: HS-200-HV

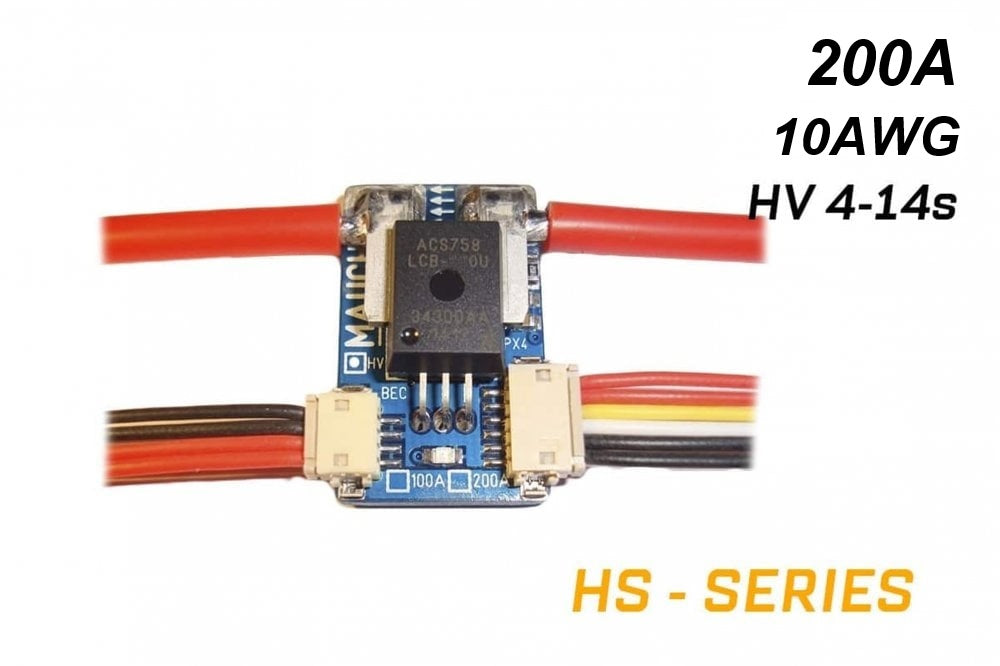

200A - Current measurement sensor board, based on Allegro Hall Sensor ACS-250U.

The voltage reading of the LiPo is optimized for up to 14S LiPo packs.

This Sensor board needs a power supply. So please select the matching BEC according to your preference from the BEC section.

The BEC will also power the flight controller as well as the attached equipment like GPS, telemetry... etc.

Connected to the sensor are 2x10cm AWG10 wire (red) as a standard.

The board comes with a 10cm connection cable (DF-13-6p <-> DF-13-6p) to the FC. If you need a customized cable in different lengths, then please order it separately.
