078: HS-200-HV / 2x 15cm 8AWG

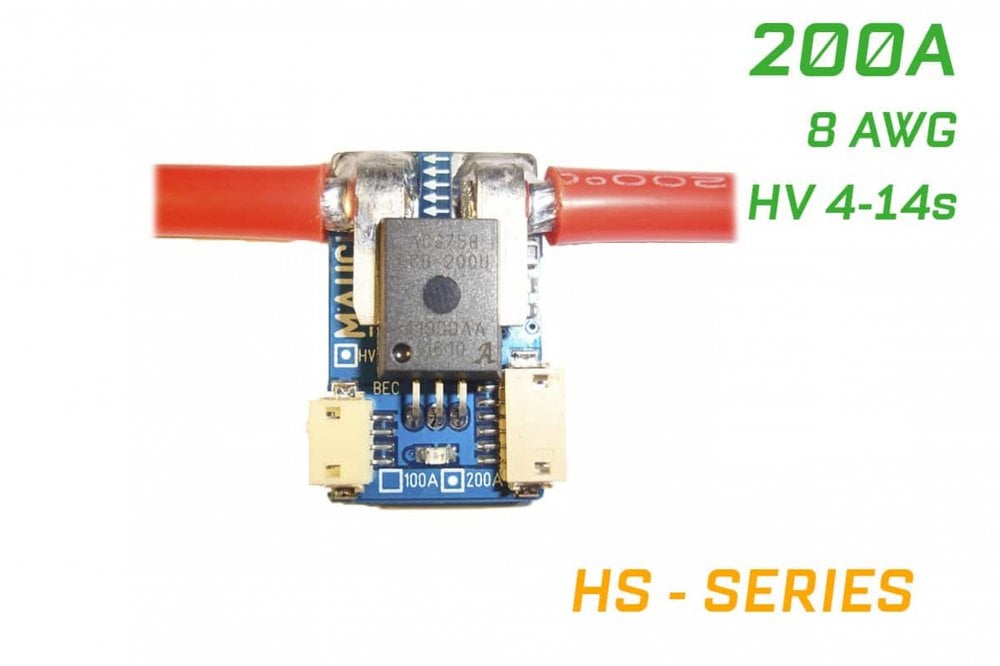

200A – Current measurement sensor board, based on Allegro Hall Sensor ACS-250U.

The voltage reading of the LiPo is optimized for up to 14S LiPo packs.

This Sensor board needs a power supply. So please select the matching BEC according to your preference from the BEC section.

The BEC will also power the flight controller as well as the attached equipment like GPS, telemetry… etc.

Connected to the sensor are 2x15cm AWG8 wire (red) as a standard.

The board comes with

10cm connection cable (DF-13-6pDF-13-6p) to the FC for Pixhawk 1 or APM
