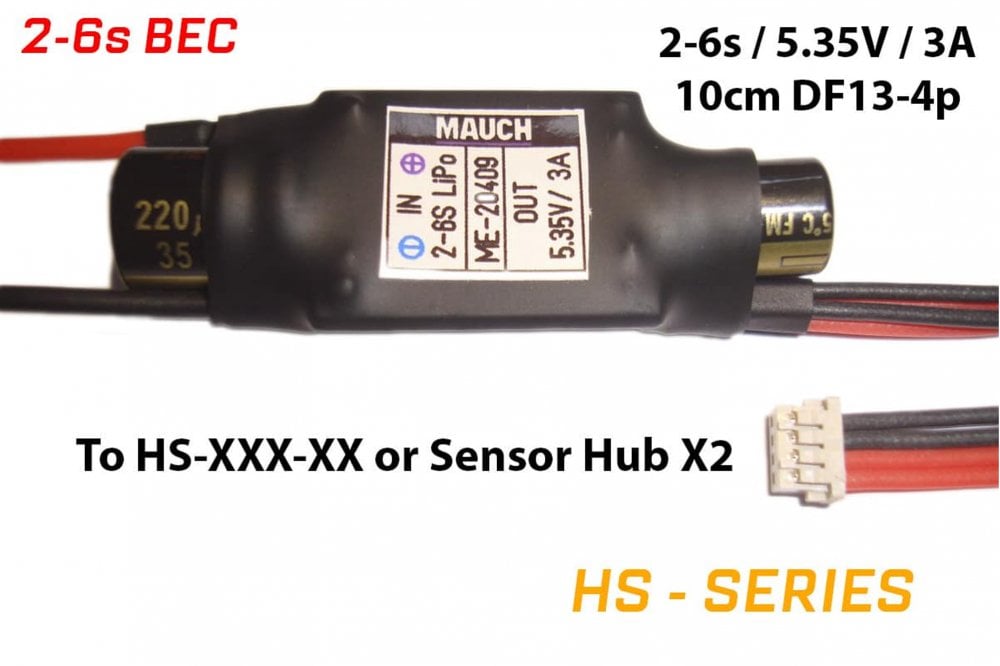

082: 2-6S BEC / 5.35V / DF-13-4P

Input 2-6S LiPo / max. 28V.

Output 5.35V / 3A -> +/- 0.05V –> Ripple 10mV (0.2%) at 1.5A output current.

Input wrong polarity protection, as well as Panasonic FM input and output capacitors to prevent burnout of the UBEC from voltage spikes.

4 pole cable with DF-13 connector. (To connect to any HS-xxx-xx current sensor board or to Sensor Hub X2)

47mm x 18mm x 11mm / 8g with cables and shrinking tube
